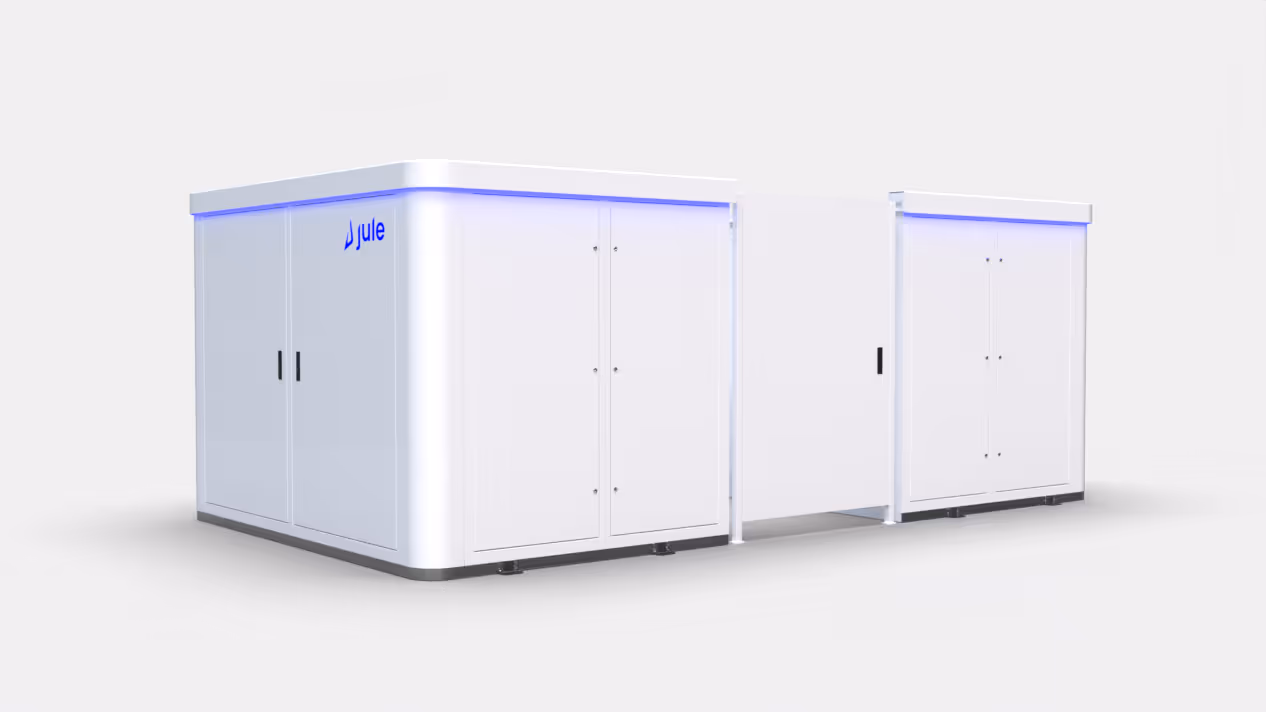

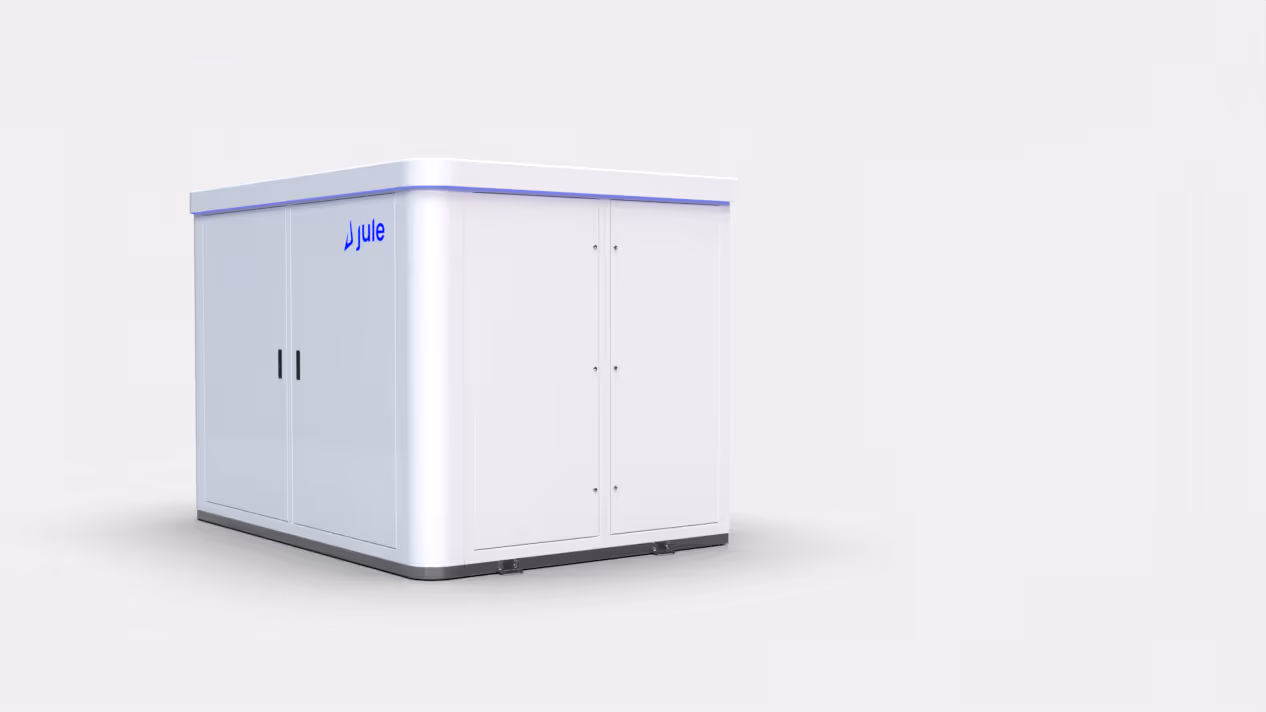

Jule Hub

Designed to be resilient, safe and enable you to future-proof your facility.

50 kW

Grid Input

600 kW

Jule Hub Output

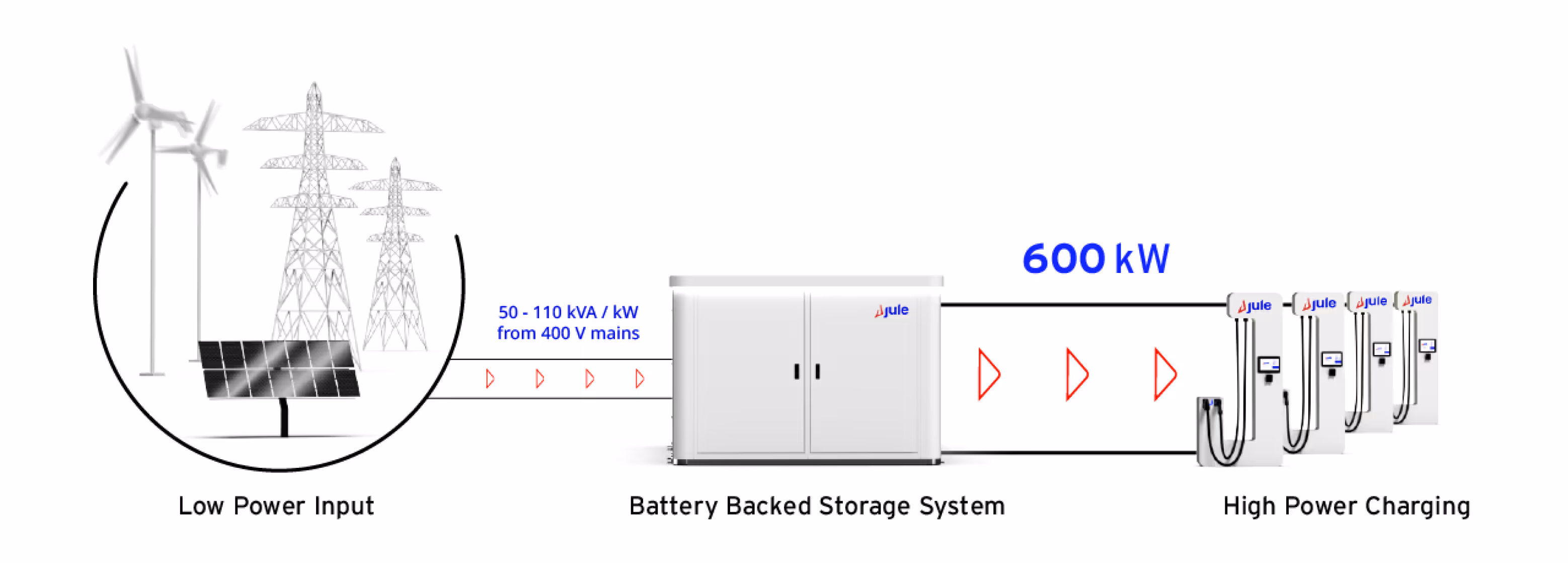

How the System Scales

Our Jule Hub Configuration standard configurations come in three sizes.

100 kW Chargers x 4-6

200 kW Chargers x 2-3

100 kW Chargers x 8-10

200 kW Chargers x 4-5

350 kW Chargers x 2

100 kW Chargers x 8-12

150 kW Chargers x 4

350 kW Chargers x 2-3

600 kW

Power Rating

165 A - 330 A

Max Output Current

650 - 790 V

Energy Storage Voltage

1000 VDC

Max DC Output Voltage

24'x12'x7' ft
7.3 x 3.7 x 2.1 m
(LxWxH)
‍

-30 °C to 50 °C
-22 to 122 °F

eSAFE Approved
TUV Approved
